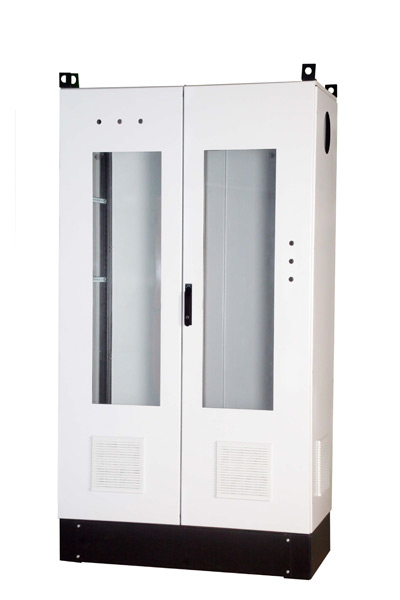

Modular Floor Standing Enclosures

Description

• Welded Body : In 2.00 thk folded CRCA sheet with vertical and horizontal (depth) indexing holes of dia 9 & dia 4.2 in pitch 12.5mm.
• Base : 3.00 thk folded sheet with removable front and rear cover in 2.00 thk.
• Door : Front & rear single door / split door /partial door in 2.00 thk CRCA sheet. With support channels, sheet metal special hinges, 3/4 point handle lock, ‘D’ type PU foam gasket.
• Cover : Front fixed bolted cover in 2.00thk for instrumentation panel in place of door. when door not necessary at rear screwed cover in 1.5 thk.
• Gland plate : Screwed CRCA bottom cover or Slotted / perforated bottom cover in 1.5 thk (for ventilation from bottom if required).
• ‘C’ Plate : In 2.00 thk / 3.00 thk as per requirement maximum size is (W-100) x (H-100)
• Lifting eye bolts : Hooks are used for normal weight & heavy duty angles for bigger enclosures.
• 19″ Racks : Din Standard 19″ equipment mounting arrangement is possible.
• 19″Swing frame : suitable for 19″ mounting in width and height as per requirement
